JR26 Racing Car
i
i
i
i
i
i
i
Motor
  • Fischer PMSM, air cooled front and rear
  • Max. Power: 35 kW per motor
  • Max. Torque: 29 Nm per motor
Suspension
  • Double-wishbone suspension with hand-laminated carbon fiber rods featuring direct front actuation and pushrod-operated rear geometry, KW coilovers and a rear anti-roll bar
Brakes
  • Self-developed calipers with three pistons at the front and a single piston at the rear
Electrics & Battery
  • Inverter: Self-developed SIC inverter, air cooled, 6th generation
  • Electrics: Self-developed PCU combined with Speedgoat as VCU
  • Battery: HK Mingda Industrial pouch cells, 600 V, air cooled
Tires & Rims
  • Tires: Hoosier 16 x 7.5 - 10 R20
  • Rims: 8 x 10 inch single part, handlaminated CFRP-Rim
Monocoque
  • Carbon-Monocoque, < 24 kg
  • Total Weight < 160 kg
  • Drivetrain: All-wheel-drive, electric
  • Wheelbase: 1535 mm
  • Trackwidth: 1240 mm front & rear
Aerodynamics
  • Lightweight concept incorperating CFD optimized front wing, rear wing, side wing, diffusor and DRS
NEVER
STOP
PUSHING

Photos: (c) FH JOANNEUM / Fabian Hasler

Joanneum Racing Graz Hochformat Bild

The JR26

The JR26 is already the fifth fully self-developed electric race car built by our team. It features a new aerodynamically optimized monocoque geometry and an advanced suspension concept. Combined with the weight-optimized packaging of the high- and low-voltage components and a battery system specifically designed to maximize competition performance, these improvements contribute to a further increase in overall vehicle performance.

Meet the JR26 team – the faces, emotions and spirit behind our newest racing car.

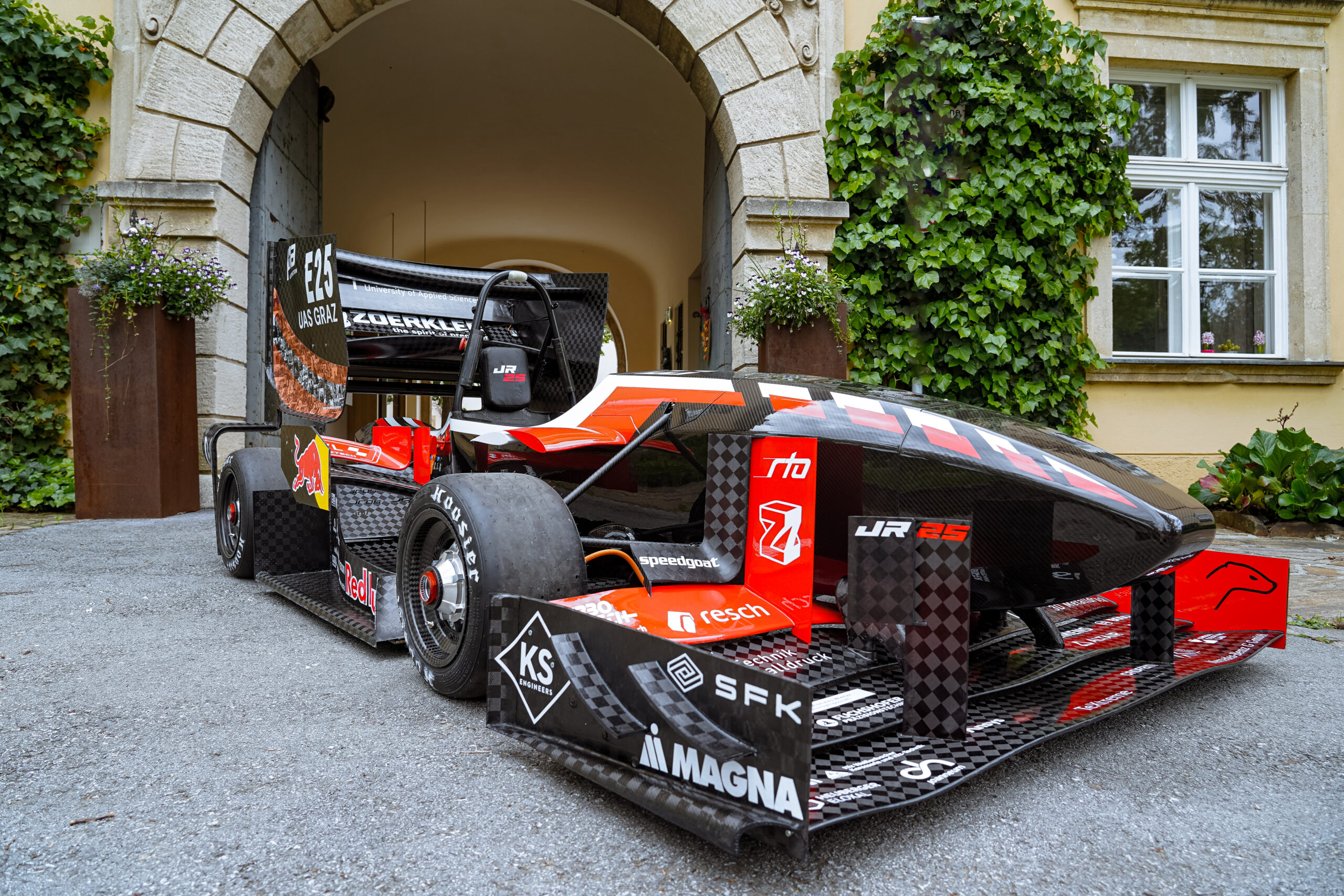

Joanneum Racing Graz Autofoto

Photo: (c) FH JOANNEUM / Fabian Hasler

FSEaster 2026

2026 Season

Racing Car

FSEaster

Hungary, June 26–28, 2026 🇭🇺

From June 26 to 28, 2026, our team started the new Formula Student season with the JR26 at the FS Easter pre-event in Zalaegerszeg, Hungary. Our Weasels delivered an outstanding performance in the static disciplines: first place in the Business Plan, first place in the Cost & Manufacturing Event, and second place in Engineering Design secured the overall victory in the static classification.

The dynamic disciplines, however, presented some challenges: the rain test was only completed successfully on the fourth attempt, which was too late for it to count toward the official results. Nevertheless, the Brake Test and half of the Endurance event over 11 kilometers were completed successfully, albeit outside the official classification.

We finished fourth overall. By participating in FS Easter, we were able to test the JR26 in real competition conditions for the first time and now know exactly what areas we need to focus on before the upcoming events.

FSCzech

Czech Republic, July 19–25, 2026 🇨🇿

From 19 to 25 July 2026, our team travelled to Most in the Czech Republic for Formula Student Czech, our first official competition of the season. With the JR26 in tow, we took on the full competition programme there for the first time.

As well as successfully passing the scrutineering checks, we achieved strong results both on and off the track. We performed well in the static judging: we were particularly delighted to reach the Engineering Design final, where we ultimately finished in 3rd place. Our Cost & Manufacturing Weasels also made it to the final and secured an impressive 2nd place there.

Things went well on the track too. On the skidpad, we secured our next podium finish with third place. The week ultimately came to an emotional end in the endurance race. The JR26 completed the entire distance with fast and consistent laps; however, due to a problem during the subsequent post-scrutineering, the race could not be counted towards the results.

With three podium finishes, two places in the final and plenty of valuable insights, an intense first competition came to an end, and we moved straight on to the next stop of the season.

FSA

Austria, July 25–31, 2026 🇦🇹

For the second race of our double-header, our team travelled to the Red Bull Ring in Austria from 25 to 31 July for the FSA home race. Having gained a wealth of valuable insights from the first races, we were able to demonstrate here that we had learnt from our previous experiences.

The week began with a smooth technical inspection. All the scrutineering tests were passed, and the JR26 was in fine form right from the start. In the static judging, we came second in the Engineering Design category. The team was also awarded second place in the ‘Best Use of Test Systems’ Special Award.

The JR26 also delivered on the track. First place in skidpad and second place in both the Endurance and Efficiency categories demonstrated consistent performance in the dynamic disciplines.

In the end, we managed to finish second in the overall standings – a particularly emotional moment for the whole team in front of our home crowd. The week of dedication and hard work has therefore more than paid off.

FSATA

Italy, September 01–06, 2026 🇮🇹

About Us

Joanneum Racing Graz is a dedicated Formula Student team made up of students from FH JOANNEUM. They all share a deep passion for motorsports and vehicle engineering. Year after year, the Weasels – as the team members call themselves – build a fully functional and competitive JR racing car. At the end of each season, they compete in international Formula Student events, consistently achieving great success. These moments are the result of months of hard work, day and night – driven by the team motto: Never Stop Pushing!

Joanneum Racing Graz was founded in 2003 and first competed in 2004 with the jr04. In the 2023 season, the team consisted of around 85 members from various degree programs at FH JOANNEUM.

In Formula Student, teams of university students design, develop, and build their own formula-style race cars and compete in international events.

The competition is divided into the following classes: Combustion Vehicle (CV), Electric Vehicle (EV), and Driverless Vehicle (DV). Teams must pass technical and mechanical inspections before participating in static and dynamic events. Static events include the Business Plan Presentation – an idea of how to integrate the car into a profitable business – Cost and Manufacturing, and Engineering Design. Dynamic events include Skidpad, Acceleration, Autocross, and Endurance.

In 2021, we participated for the last time with a combustion-powered car, and it was a very successful season. We won two overall competitions, reached second place in the world rankings at one point, and finished the season ranked 9th globally.

Since 2022, we have been building an electric race car. With the JR22, we won several static disciplines at FS Netherlands and FS Austria. Even in our debut season with an electric vehicle, we secured an overall win at FS Alpe Adria in Croatia. This made us the first Austrian team ever to win an overall competition in the electric class of Formula Student.
